The Core Question
What if the key to unlocking single-digit cooling power in data centres was choosing a worse coolant? That's the counterintuitive truth reshaping how facilities from hyperscale to enterprise approach liquid cooling: food-grade propylene glycol — less efficient at moving heat than ethylene glycol — enables a closed-loop architecture that eliminates the single biggest variable cost in data centre operations: water.
The Coolant: Water Moves Heat. Glycol Keeps the Loop Alive.
In any liquid-cooled data centre, the working fluid is water-plus-glycol. The water carries the heat; the glycol depresses the freezing point and provides corrosion protection. Without glycol, a cooling loop in Chicago or Frankfurt would freeze solid in winter, destroying pumps and bursting pipework. The choice of which glycol is where the economics begin.
| Property | Ethylene Glycol | Propylene Glycol (Food-Grade) |
|---|---|---|
| Heat transfer coefficient | Higher (better) | ~15–20% lower (worse) |
| Pumping power (same duty) | Lower | ~10–15% higher |
| Toxicity | Toxic — fatal if ingested | Food-grade — safe if it leaks |
| Environmental hazard | Groundwater contaminant | Readily biodegradable |
| Regulatory burden | Double containment, leak detection, hazmat reporting | Standard plumbing codes |
| District heating reuse | Prohibited in most jurisdictions | Permitted — enables heat networks |
Ethylene glycol wins on paper: better heat transfer, lower pumping power. But it's toxic. A single leak into a district heating loop, a groundwater table, or a building's domestic water system is a regulatory and legal disaster. Propylene glycol — the same stuff in your toothpaste and ice cream — eliminates that entire risk category.
Food-grade: safe if it leaks, unlike ethylene glycol.
The water moves heat. Glycol keeps the loop alive.
The Scale: How This Trade-Off Transforms Data Centre Economics
The real payoff isn't in the coolant itself — it's in what the coolant enables. Because propylene glycol is safe, you can run a closed-loop cooling system with dry coolers that vents heat directly to ambient air. No cooling towers. No evaporation. No makeup water. No chemical treatment programme. No Legionella risk management plan.
| Metric | Traditional (Chillers + Cooling Towers) | NVIDIA Rubin (Closed Loop + Dry Coolers) |
|---|---|---|
| Water consumption | ~2.6M gal/MW/yr evaporated | Near zero |
| Cooling as % of facility power | ~40% | Single digits |
| Rack density supported | 20–50 kW/rack (practical limit) | 150 kW/rack becomes routine |
| Heat reuse potential | Limited — low-grade waste heat | High — can feed district heating networks |
| Chemical treatment | Required — biocides, corrosion inhibitors, scale inhibitors | Minimal — closed system, no evaporation cycles |
All from picking a "worse" coolant. The math is brutal in propylene glycol's favour once you zoom out from the pump curve to the P&L statement.
MCL and the Future: Modular Closed-Loop Cooling

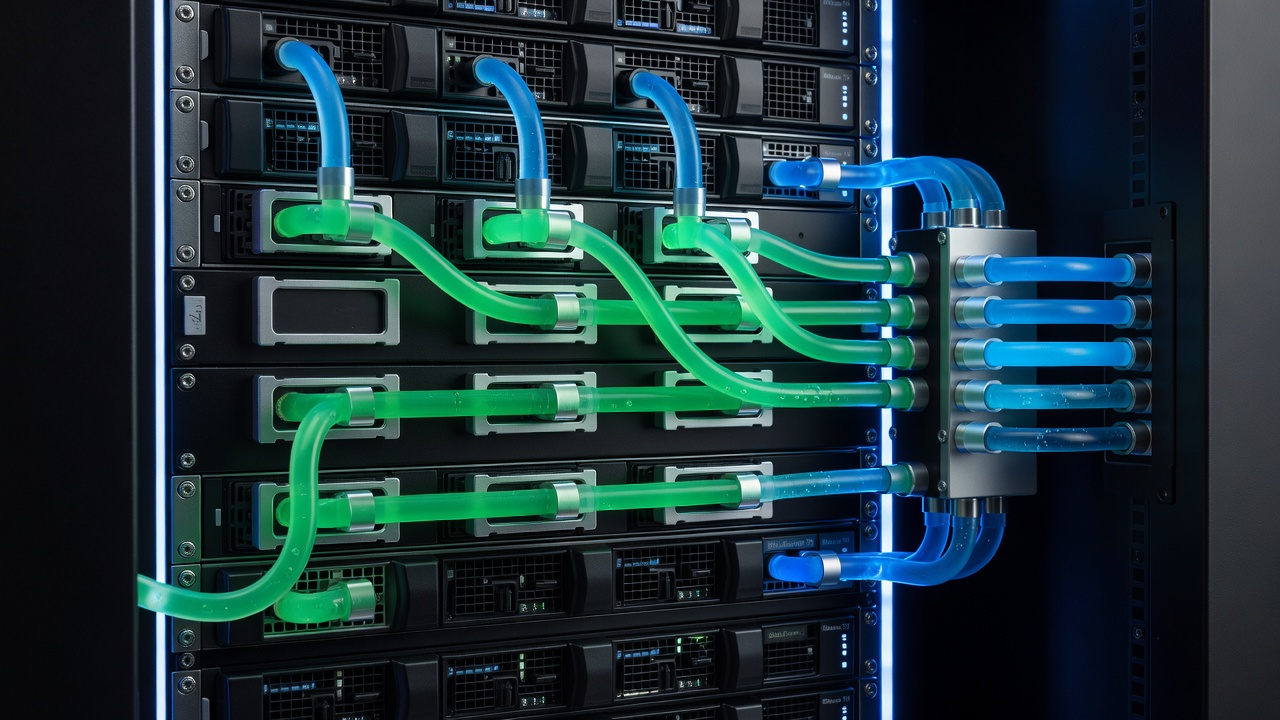

The NVIDIA Rubin architecture isn't just a chip upgrade — it's a cooling philosophy shift. Modular Closed-Loop (MCL) cooling treats the entire rack as a sealed thermal module. Direct-to-chip cold plates running a propylene glycol–water mixture extract heat at the source, while roof-mounted dry coolers reject it to atmosphere. The loop is factory-sealed, factory-filled, and factory-tested — no field glycol mixing, no balancing contractor, no commissioning drama.
What this means for the industry:
- Site selection decoupled from water access. You can build a 50 MW data centre in Arizona or Santiago without securing water rights.
- PUE approaching 1.03–1.05. When cooling drops to single-digit percentages of total facility load, almost all incoming power goes to compute.
- Heat as a revenue stream. 150 kW per rack at 45–60°C supply temperature is directly usable for district heating, greenhouse agriculture, or industrial process preheat. Propylene glycol makes it legally and practically feasible.
- No Legionella management. Closed loops with dry coolers eliminate the open-water systems where Legionella breeds — no water treatment chemist, no quarterly sampling, no public health reporting.
What This Means for HVAC Engineers
The same principles apply at smaller scales. Any facility with a hydronic cooling loop — whether it's a commercial building, a hospital, or a pharmaceutical plant — faces the same ethylene glycol vs. propylene glycol decision. The variables are identical: heat transfer efficiency, pumping cost, toxicity risk, regulatory burden, and heat recovery potential.
Key engineering considerations when designing or retrofitting a glycol loop:
| Factor | Guidance |
|---|---|
| Freeze protection | Size glycol concentration for the lowest expected ambient at the dry cooler location, not the building interior. Add 5°C margin. |
| Pump sizing | Account for 15–30% higher pressure drop with propylene glycol vs. pure water. Oversize impellers or select the next motor frame size. |
| Heat exchanger derating | Apply a 10–15% capacity derate for propylene glycol mixtures. Plate heat exchangers are less affected than shell-and-tube. |
| Material compatibility | Propylene glycol is compatible with most HVAC materials (copper, brass, steel, EPDM). Avoid zinc (galvanised) — glycols attack zinc coatings. |
| Corrosion inhibitors | Use pre-inhibited industrial-grade propylene glycol. Test inhibitor levels annually. Uninhibited glycol oxidises into corrosive organic acids. |
Have a glycol loop question?
Lady Havi, our AI host, is ready to help. Search the HVAC controls knowledge base — glycol concentration, pump sizing, heat exchanger derating, corrosion inhibitors, closed-loop design. Ask Havi for answers backed by engineering knowledge.
Ask Havi
Related Questions
- How do I size a control valve Cv for a chilled water coil?
- What is the difference between pressure-independent and pressure-dependent valves?
- What flow sensor types are used in HVAC hydronic systems?
- What is valve authority and why does it matter?
Sources
- NVIDIA. NVIDIA DGX GB300 SuperPod Reference Architecture — closed-loop liquid cooling with 150 kW/rack density. nvidia.com
- U.S. Department of Energy, Lawrence Berkeley National Laboratory. United States Data Center Energy Usage Report — cooling systems represent ~40% of total data center energy consumption. LBNL-1005775, 2016.
- ASHRAE Technical Committee 9.9. Thermal Guidelines for Data Processing Environments, 5th Ed. — guidelines for liquid-cooled IT equipment and facility water supply temperatures.
- The Green Grid. Water Usage Effectiveness (WUE™): A Green Grid Data Center Sustainability Metric — 2.6 million gallons/MW/year is the typical evaporation rate for cooling tower-based data centers in temperate climates.
- U.S. EPA. Ethylene Glycol Hazard Summary — LD₅₀ 4,700 mg/kg (rat, oral), classified as hazardous. EPA 749-F-99-004.
